20mm Single Tii-On Block.
Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.

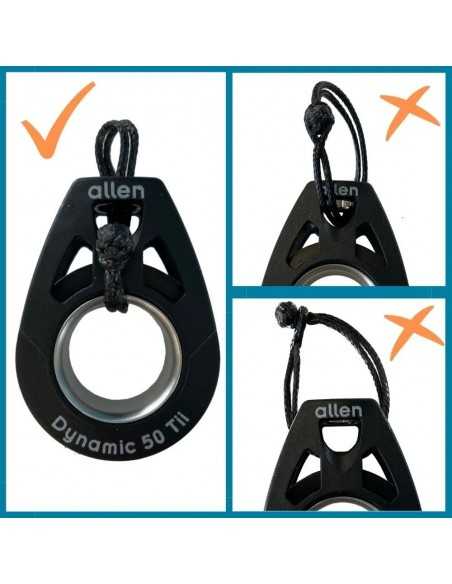

When attaching a Tii-on block you must feed the rope around the central axle and through the head of the block. Tii-On blocks rely on the correct attachment method to give them maximum strength. Available with or without a soft shackle.
Becket – The large central rivet not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Bearings – Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Lenght (mm):
- 29
- Ø Max Rope (mm):
- 6
- Ø Min Rope (mm):
- 2.5
- Block Sheaves:
- Double Becket
- Sheave (mm):
- 20
- Breaking Load (kg):
- 540
- Working Load (kg):
- 225
- Mounting Type :
- Lashing - Soft Shackle
- Weight (gr):
- 15.5
- Bearing Type:
- Stainless Steel A4 316l Balls
- High Load :
- Non
- Winch:
- Non
- Serie :
- 20
