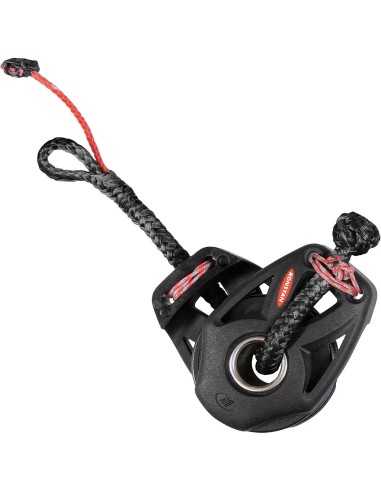

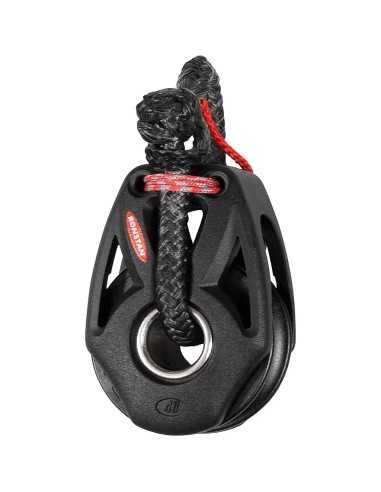

The new Series 40 ball bearing Orbit Blocks™ provide the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fibre reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.
As well as traditional single swivel blocks, the range also includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is extremely versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.
Series 40 Orbit Blocks™ are fitted with our carbon reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and are adjustable for setting to your preferred cleating angle.
Line load through cleat not to exceed 125kg (275lb). MWL is total block load. Becket MWL 400kg (880lb), BL 800kg (1760lb)
- Ø Max Rope (mm):
- 10
- Block Sheaves:
- Single Becket
- Sheave (mm):
- 40
- Breaking Load (kg):
- 800
- Working Load (kg):
- 400
- Weight (gr):
- 47
- Bearing Type:
- Duplex 2205
- Winch:
- Non
