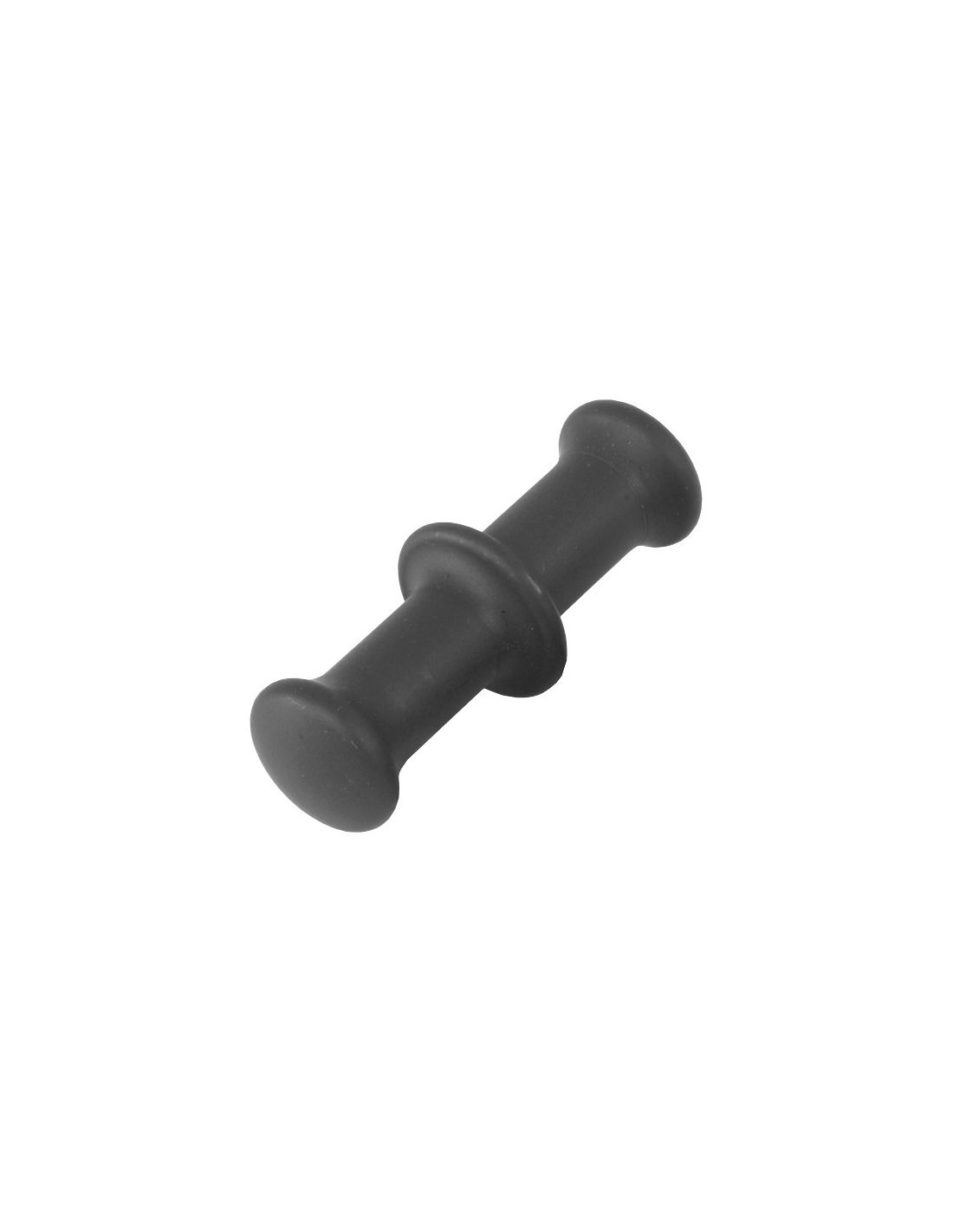

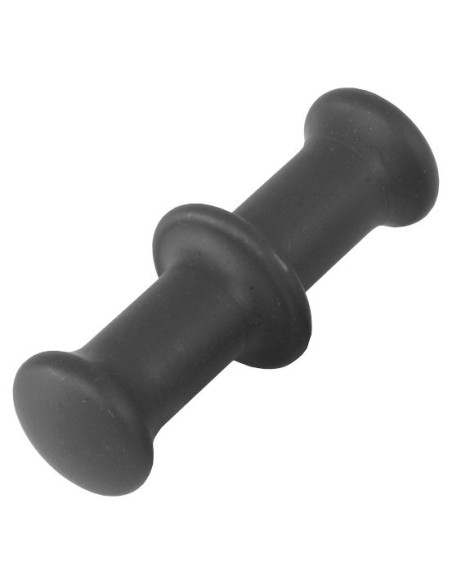

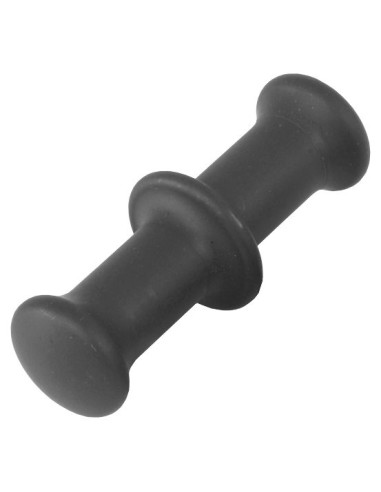

Dog bone realized in hard black anodized aluminum
The use of Dyneema lines, characterized by high stiffness and strength and by excellent smoothness, resulted in the development of new equipment that exalts these properties. First, the fastenings called “soft-links”: Dyneema loops and snap-loops that replace shackles, snap-shackles and other metal connections. The Dyneema loops that Antal realizes are Mini snap loop, with thin Dyneema lines, Snap loop with cover and Snap loop without cover. The line cover protects Dyneema from wearing, while a loop without cover bears on equal diameter higher loads. Finally, Dog bones allow you to prepare personalized loops.

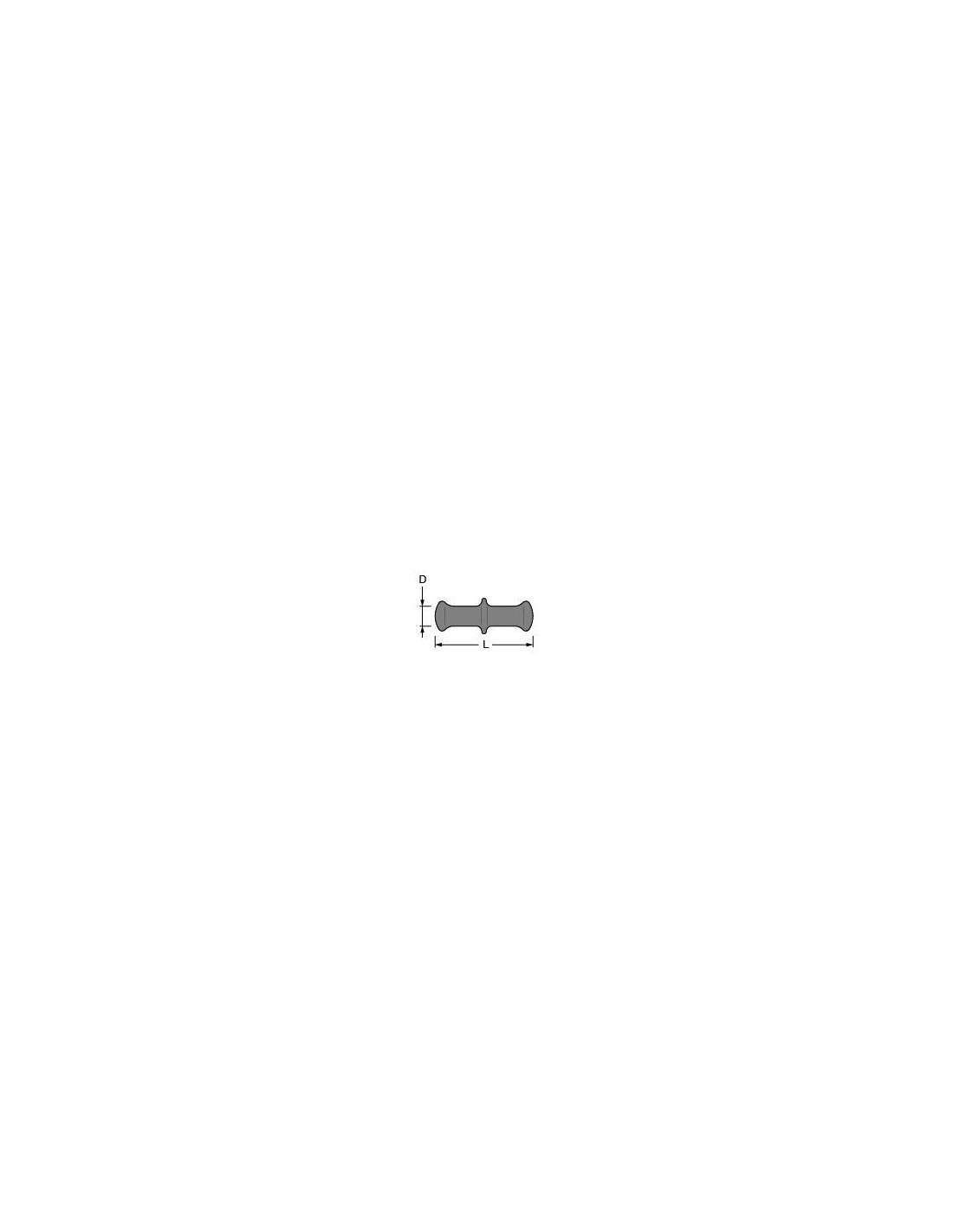

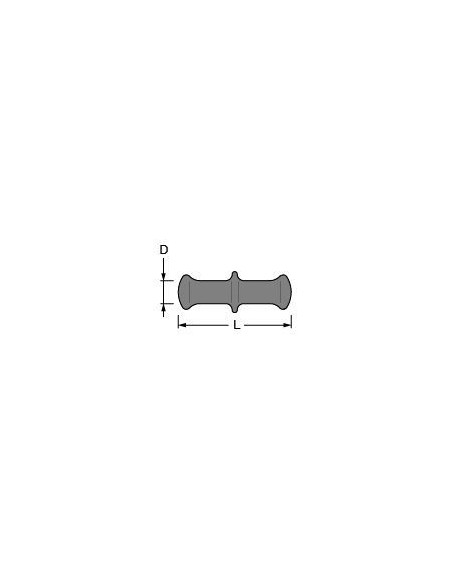

References | Rope Diam Max (mm) | Lenght (mm) | Diam Max (mm) | Weight (gr) |
LS2062 | 4 | 30 | 6.5 | 3 |
LS2072 | 5 | 37 | 8 | 6 |
LS2082 | 6 | 46 | 10 | 13 |
LS2102 | 8 | 55 | 11.5 | 22 |
LS2122 | 10 | 67 | 13.5 | 36 |
LS2142 | 12 | 79 | 16 | 55 |
- Material(s):
- Hard Anodized Aluminum
- Lenght (mm):
- 67
- Ø Max Rope (mm):
- 10
- Ø Max (mm):
- 13.5
- Weight (gr):
- 36
