Roots Fittings Mast Gooseneck Offset Complete

Roots Fittings Offset Mast Gooseneck

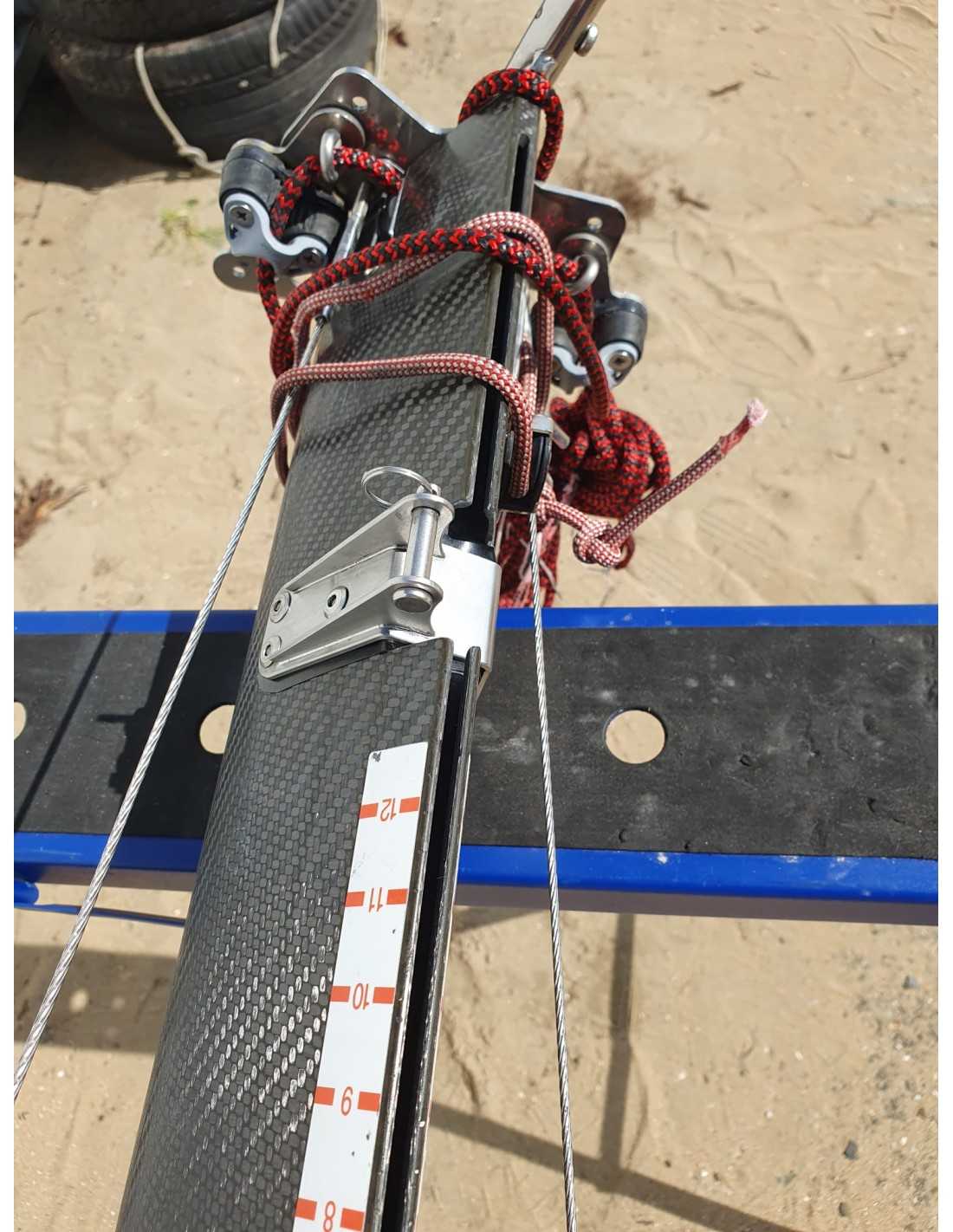

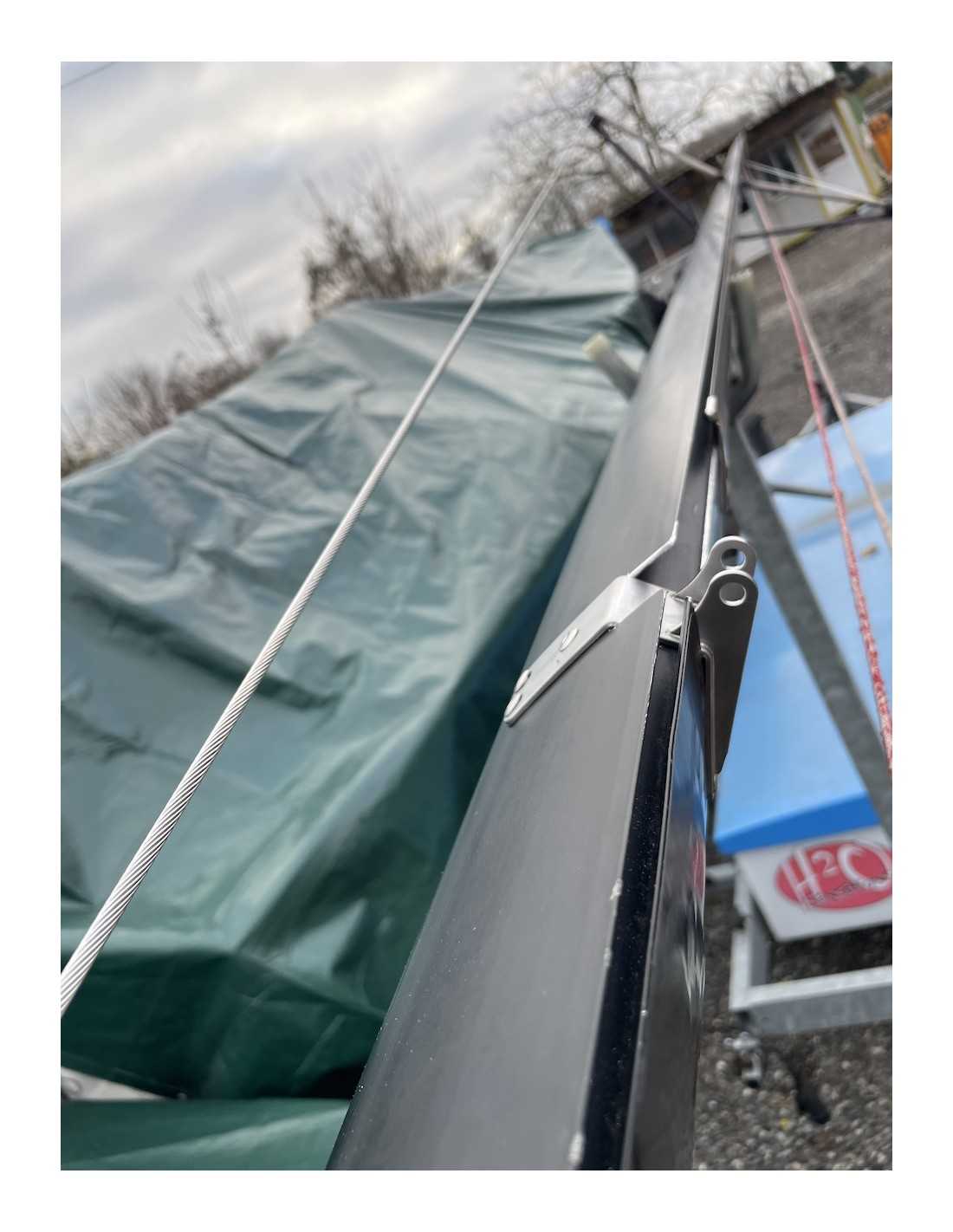

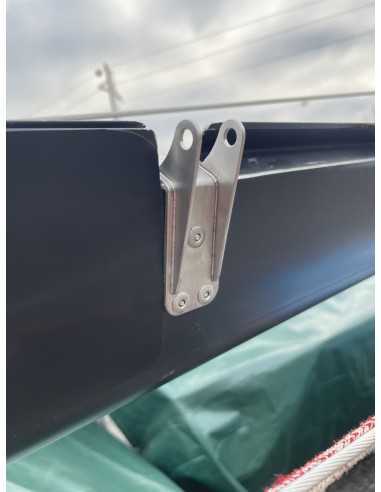

The Roots Fittings mast gooseneck offset has been designed to keep the boom pivot axis as close to the mast axis as possible, while leaving enough room for the mainsail to pass over its side. Deck sweeper-type mainsails can therefore pass through easily and smoothly. The boom will push the mast with almost the same pressure to port and starboard!

Made from Duplex 2205, this material is 30% stronger than stainless steel for the same thickness! Fastened with three rivets on each side for better support and to ensure that the gooseneck screw sits flush with the mast. We recommend the use of AVINOX 4.8*15.4mm rivets (H2O31265), but never use aluminum rivets to fasten mullet screws.

We recommend using either sikaflex or pre-cut 125micron PROtect Tape (H2O00027), to insulate the duplex from aluminum or carbon!

• Length on each side of mast: 55mm
• Length in contact with mast 27.5mm

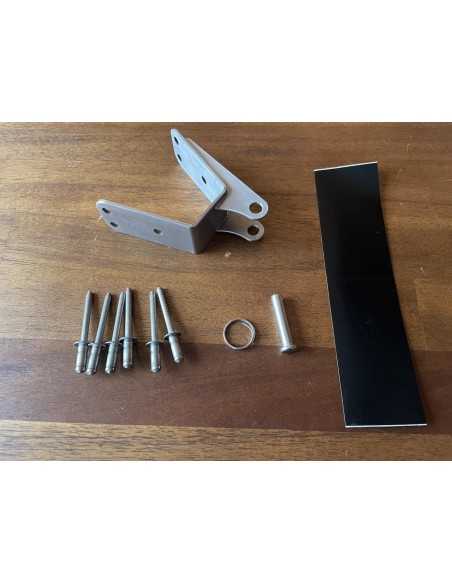

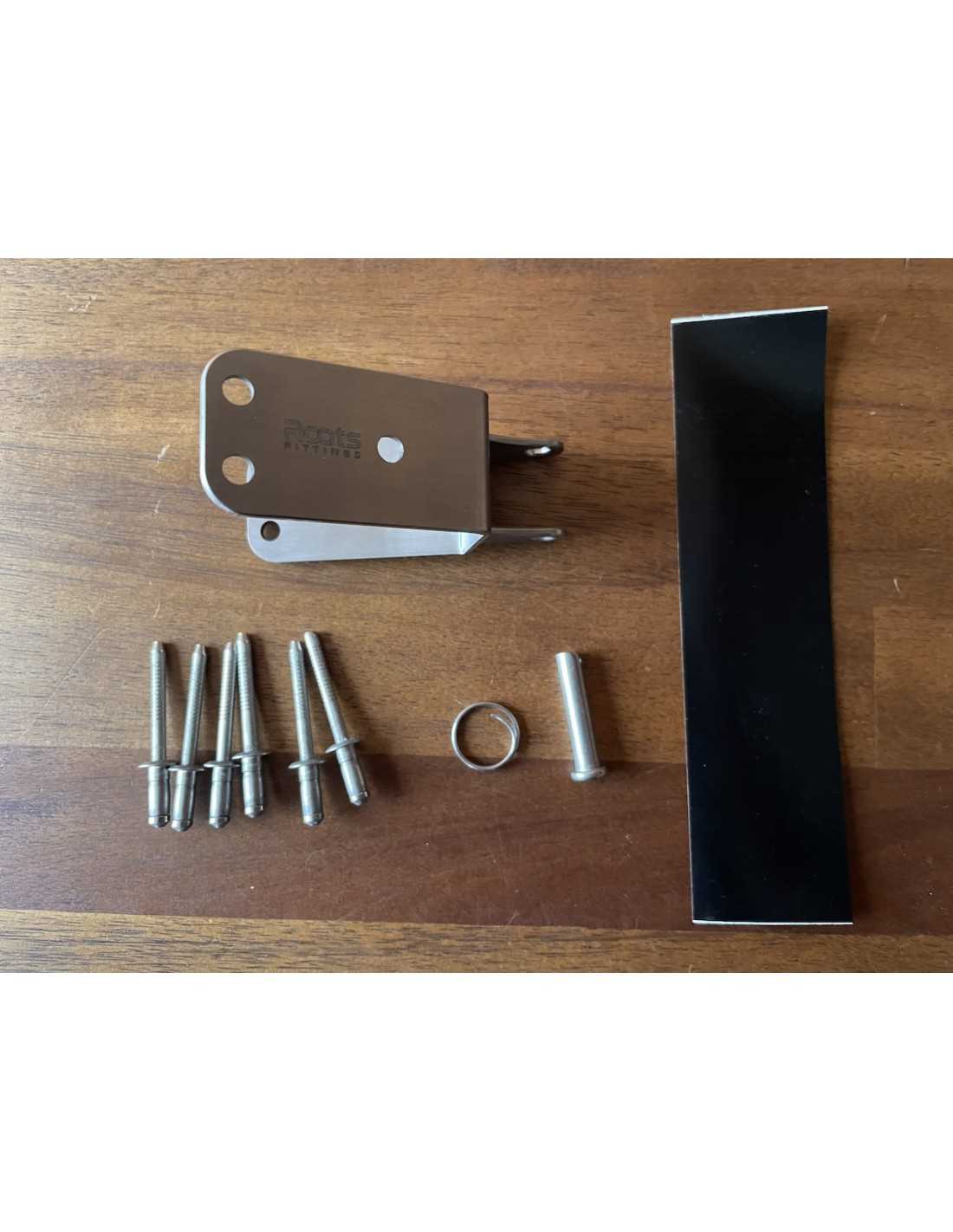

This pack includes:

• 1 Roots Fittings Gooseneck Offset
• 6 Avinox 4.8*15.4mm rivet
• 1 Clevis Pin 6.4*25mm
• 1 Split Ring double 1.7mm
• 1 Mast protection self adhesive band 35*152mm
