Harken Shackle Bow Forged 6mm
HK2110
In Stock! : 9 Items CHF15.80 Tax included

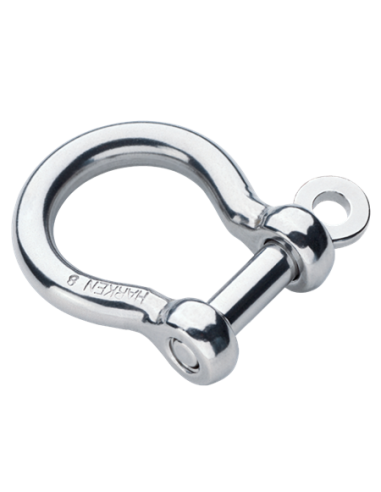

Harken Shackle Bow Forged
Harken Shackle Bow Forged. Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Reference | HK2103 | HK2110 | HK2117 | HK2124 |
Shackle pin Ø (mm) | 5mm | 6mm | 8mm | 10mm |
Shackle pin Ø (in) | 3/16in | 1/4in | 5/16in | 13/32in |
Weight (g) | 18g | 29.5g | 70.5g | 138.5g |
Weight (oz) | 0.64oz | 1.04oz | 2.48oz | 4.88oz |
A (mm) | 25mm | 27mm | 38mm | 48mm |
A (in) | 1in | 1 1/16in | 1 1/2in | 1 7/8in |
B (mm) | 10mm | 14mm | 17mm | 22mm |
B (in) | 3/8in | 9/16in | 11/16in | 7/8in |
C (mm) | 17mm | 19mm | 29mm | 32mm |
C (in) | 11/16in | 3/4in | 1 1/8in | 1 1/4in |
Maximum working load (kg) | 540kg | 750kg | 1380kg | 2210kg |
Maximum working load (lb) | 1190lb | 1650lb | 3040lb | 4870lb |
Breaking load (kg) | 1080kg | 1500kg | 2760kg | 4420kg |
Breaking load (lb) | 2380lb | 3300lb | 6080lb | 9740lb |
- Material(s):
- Stainless Steel A4
- Useful Lenght (mm):
- 27
- Width (mm):
- 14
- Ø Internal (mm):
- 19
- Shackle Pin Ø (mm):
- 6
- Breaking Load (kg):
- 1500
- Working Load (kg):
- 750
- Mounting Type :
- Hande Screw
- Shape:
- Bow
- Weight (gr):
- 29.5
- Manufacturing Type:
- Forged
