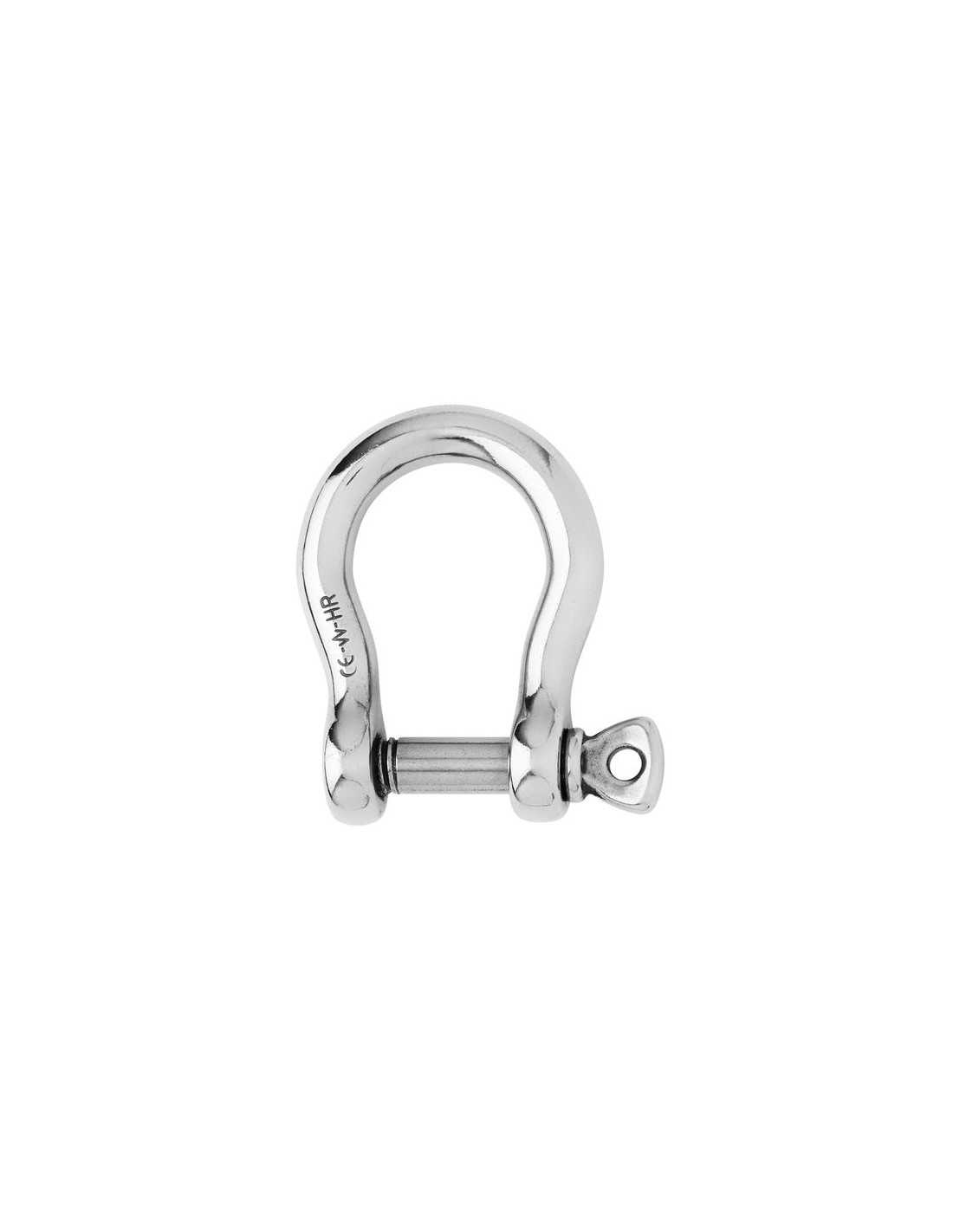

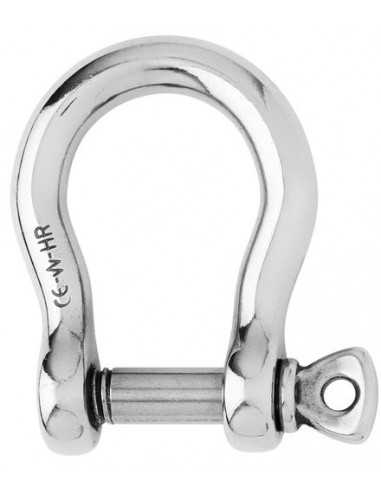

Wichard Shackle Bow HR 8mm

    Wichard Shackle Bow HR 8mm

    WI11244
    In Stock! : 3 Items
    CHF37.80 Tax included

    Wichard Shackle Bow HR 8mm

    Forged Bow shackle in HR stainless steel grade (17,4 PH)
    Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    WLL: only for industrial applications (lifting i.e…)
    CE marking and batch number

    Applications

    Applications requesting high loads Standard applications of shackle Attachment applications: blocks, head …
    Do not use for moorring applications

    Working load (WL) : for nautical applications

    Working Load Limit (WLL): for industrial applications only.
    The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

    Material(s):
    Stainless Steel HR 17.4PH
    Useful Lenght (mm):
    37
    Width (mm):
    16
    Shackle Pin Ø (mm):
    8
    Breaking Load (kg):
    4100
    Working Load (kg):
    1750
    Mounting Type :
    Hande Screw
    Shape:
    Dee
    Weight (gr):
    68
    Manufacturing Type:
    Forged
    3 Items
