Ronstan Threaded Swage Terminal 3mm 1/4 UNF RF1512M0304 H2O Sensations

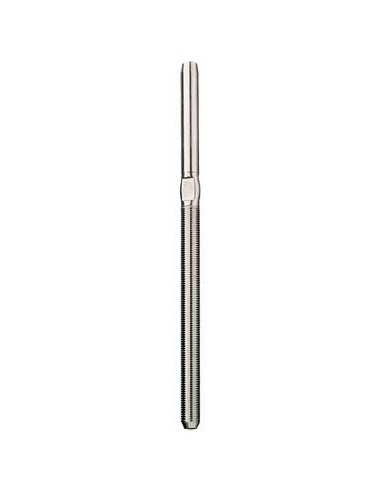

    Ronstan Threaded Swage Terminal 3mm 1/4 UNF

    RF1512M0304
    In Stock! : 50 Items
    CHF8.50 Tax included

    Ronstan Threaded Swage Terminals

    Threaded swage terminals (2.5-26mm wire) have rolled right hand UNF threads for greater strength

    Technical Specs:

    DescriptionRF1512M0304RF1512M0404RF1512M0405RF1512M0505
    Wire Ø3.0mm4.0mm4.0mm5.0mm
    Suits Turnbuckle

    RF1575M0304

    		RF1575M0404RF1575M0405RF1575M0505
    Thread1/4" UNF1/4" UNF5/16" UNF5/16" UNF
    A - Center Diameter Thinner4.9mm6mm6mm7.5mm
    B - Swaged Lenght39.0mm45mm45mm33.0mm
    C - Total Lenght 133.0mm142.0mm152mm139.0mm
    D - Thread Lenght75.0mm75.0mm89.0mm128.5mm
    E - Center Diameter Wider6.7mmNAmm7.9mm
    Weight25gr30gr50gr41gr

    Material(s):
    Stainless Steel A4
    Lenght (mm):
    133
    Useful Lenght (mm):
    75
    Ø Max Wire (mm):
    3.0
    Ø UNF:
    1/4
    Weight (gr):
    25
    50 Items
